Navigator Toolbar

Introduction

On top of every Grid Data entry user will see a list of some function buttons shown as below.

Type 1

Below is the detail of each button (From Left)

Button Name	Properties
Append	To insert/add new record(s).
Delete Selection	To delete selected record(s).
Save	Save the record(s).
Cancel	Cancel the current change(s).
Revert Record	Undo edits to the currently selected record.
Print	Print the grid list.
Preview	Preview the grid list.
Show Default Record	Show normal grid layout.
Show Inserted Record	Show only newly added/appended record(s).
Show Modified Record	Show only changed record(s).
Show Deleted Record	Show only deleted record(s).

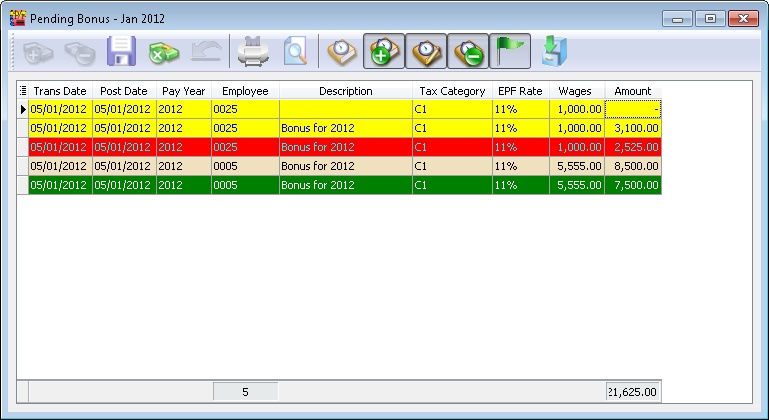

Highlight	Show indicators for: - Insert: Yellow - Delete: Red - Modified: Green Refer to the image below for highlight examples. This can only be used if the current changed record(s) are unsaved (i.e. before clicking Save).
Import Data	Import data from an external file (e.g., CSV or TXT file).

Type 2

Below is the detail of each button (From Left)

Button Name	Properties
Append	To insert/add new record(s).
Delete Selection	To delete selected record(s).
Copy	To copy the selected record(s).
Paste	Paste the copied record(s).
Icon	Show records in icon view.
Small Icon	Show records in small icon view.
List	Show records in list view.
Details	Show records in detailed view.
Tiles	Show records in tiles view.
